ProLine Irrigation Controller





The ProLine Irrigation Controller offers basic irrigation control and advanced features in a easy-to-program and affordable unit.

With up to 4 programs that can run independently or simultaneously, with up to 8 start times per day and day selection capability, the ProLine provides flexibility in your watering.

This modular controller starts with 4 outputs, but is expandable up to 24. Each valve can operate from 1 minute to 9 hours, 55 minutes. Seasonal adjustment allows for these values to be changed based on time of year without altering the each valve's programming.

The ProLine offers manual operation of an individual valve or an entire program.

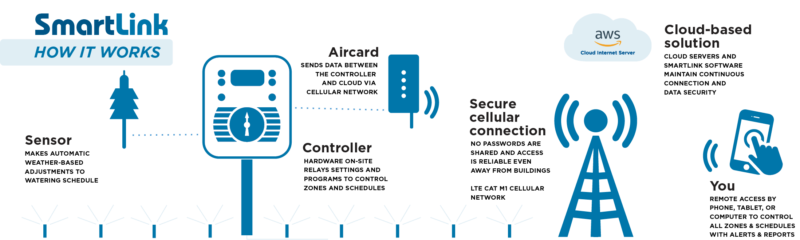

Connect to your controller to monitor activity or adjust the programming from anywhere with the SmartLink upgrade (requires optional cellular connection package and air card). The SmartLink App on your phone allows easy access.




ProLine Irrigation Controller - 4 Station (expandable)


The ProLine Irrigation Controller offers advanced control features such as multiple program operation, master valve, multiple start times per day, manual operation, and an option to add cellular connectivity to monitor and modify irrigation operation from your phone.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PL1600-04 4 output ProLine Irrigation Controller - 4 Station (expandable) BROCHURE MANUAL2 lbs

ProLine Quick Start Guide


Quick Start Guide for the ProLine Controller. Step-by-step instructions to program the basics.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
ProLineQS Document ProLine Quick Start Guide BROCHURE MANUALNA

ProLine Installation Guide


Easy instructions showing how to install your ProLine Controller.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
ProLineIG Document ProLine Installation Guide BROCHURE MANUALNA

ProLine Irrigation Controller - 8 Station (expandable)



ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PL1600-08 8 output ProLine Irrigation Controller - 8 Station (expandable) BROCHURE MANUAL2 lbs
PL1600-12 12 output ProLine Irrigation Controller - 12 Station (expandable) BROCHURE MANUAL2 lbs
PL1600-12B 12 output (base) ProLine Irrigation Controller - 12 Station with 12 st base (expandable) BROCHURE MANUAL2 lbs
PL1600-16 16 output ProLine Irrigation Controller - 16 Station BROCHURE MANUAL2 lbs
PL1600-20 20 output ProLine Irrigation Controller - 20 Station BROCHURE MANUAL2 lbs
PL1600-24 24 output ProLine Irrigation Controller - 24 Station BROCHURE MANUAL2 lbs
PL-1600-M4 4 output module ProLine 4 station expansion module BROCHURE MANUAL10 oz
PL-1600-M12 12 output module ProLine 12 station expansion module (uses two expansion ports) BROCHURE MANUAL10 oz
PL-SLAC - ProLine AirCard - GSM Cellular Network card for remote access. *monthly plan required BROCHURE MANUAL10 oz
PL-SLAC-50 - ProLine AirCard - GSM Cellular Network card for remote access with 50' cord. *monthly plan required BROCHURE MANUAL-
PL-420LS - ProLine Rain/Freeze Sensor w/ 20ft wire & mount BROCHURE MANUAL-
